Hexagon (B&S) - Leitz / Sharpe32z / RC1 (DCC)

Hexagon (B&S) - Leitz / Sharpe32z / RC1 (DCC)

Models: Leitz, Sharpe32z, RC1
Notes
Leitz (Com Port)
Default settings:
Controller Selection: Leitz
Com Port Settings: 9600, N, 8, 1
ProbeType - TP6
Notes
Leitz (TCP/IP)
Default settings:
Controller Selection: Leitz
TCP/IP: IP address in the range 80.128.0.X (e.g. 80.128.0.1 assuming controller is using address 80.128.0.2) - Port 2001
ProbeType - TP6

Other possible IP address:
204.17.113.168 (host – controller)
204.17.113.169 (client – software)
Notes
RC1
Default Settings:
Controller Selection: RC1
TCP/IP: IP - 100.0.0.1 / Port - 1234
ProbeType - TP2
Info
IQ Configuration / Driver File
Location: C:\ProgramData\QxSoft\CMM-Manager [current version]\Driver
Example for RC1:
Quote
CONTROLLER 1 // 0 Leitz 1 RC1
...
PRBTYP TP2 // probe type
...
USE_ETHERNET 0 // 0 = use serial, 1 = use ethernet
CMM_IPADDRESS 100.0.0.1 // Controller network IP address
CMM_PORT 1234 // Controller network port number
Info
Controller Configuration File: No configuration file (i.e. downl.oad or syspar.asc) is used for the Leitz controller; configuration is stored on the controller.
Info
Error Map: Error Map for Leitz protocol should be located in the controller. If so, no error map file is required. Even so, it is recommended to search for the usual suspects (i.e. comp.dat or comp.asc) and check-in previous client software to see if the software / file-based Error Map was used.
Info

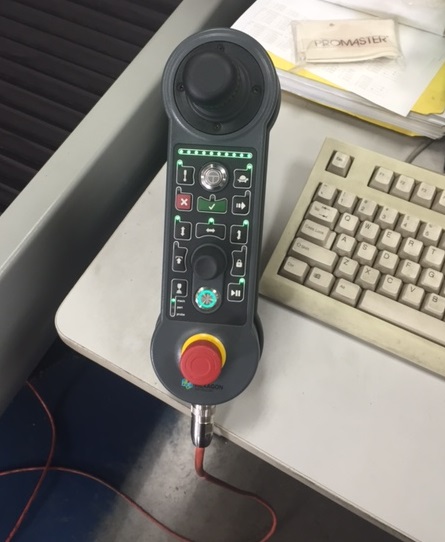

Jogbox: The Sharpe32 and Sharpe32z (Leitz) jogbox can be the same. To identify one vs. the other, refer here -  Identify Sharpe32 vs. Leitz controller
