Hexagon (B&S) - Sharpe2 (DCC)

Hexagon (B&S) - Sharpe2 (DCC)

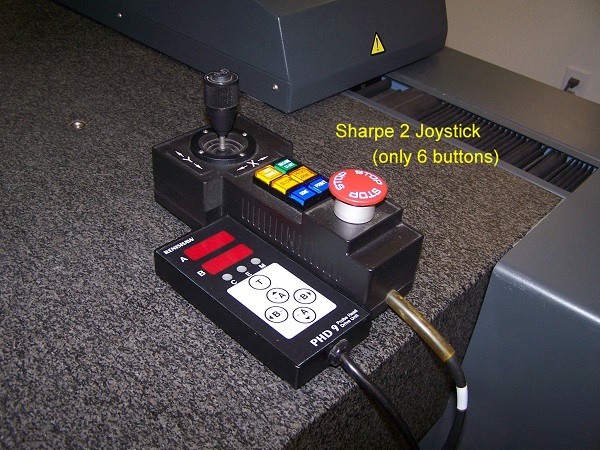

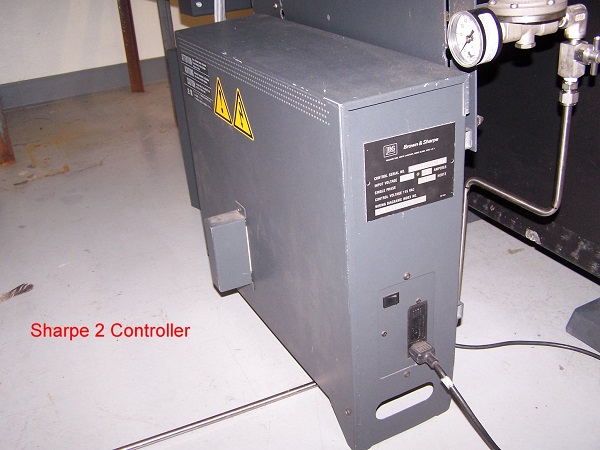

Sharpe2
Notes
Default settings:
Com Port Settings: 4800, E, 7, 1
Info
If the downl.oad file fails to load, try this:
Open C:\ProgramData\QxSoft\CMM-Manager [current version]\Driver\SharpeDriver.ini
Find the line:
DOWNLOAD_NEW 0 // 0 - old method, 1 - new method
Change to:
DOWNLOAD_NEW 1 // 0 - old method, 1 - new method
