Renishaw - UCC Direct 3.0/2.0 (DCC) - Hardware Diagrams

Renishaw - UCC Direct 3.0/2.0 (DCC) - Hardware Diagrams

Supported and tested configurations:

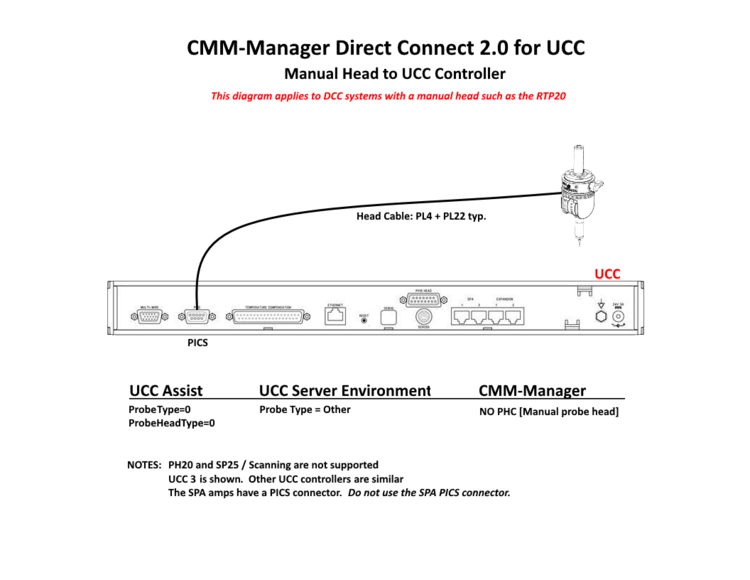

Manual Probe Head

PH10 direct to UCC T3 PLUS (No external PHC10)

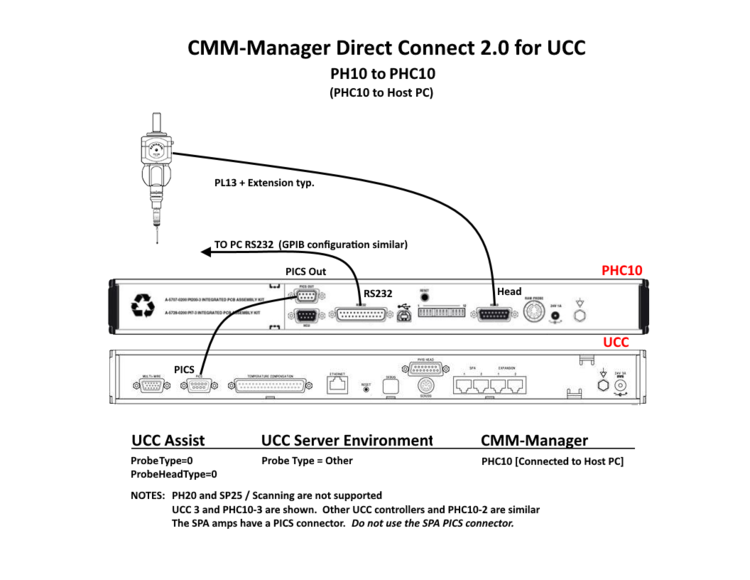

PH10 to PHC10 - PHC10 controlled via RS232 to the Host PC

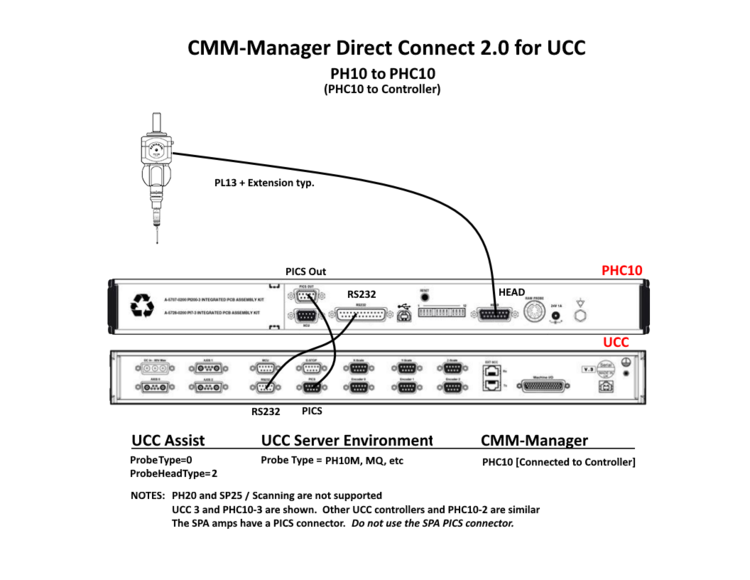

PH10 to PHC10 - PHC10 controlled via RS232 to controller
