Nikon - Optical MM-400 / Comparator (manual)

Nikon - Optical MM-400 / Comparator (manual)

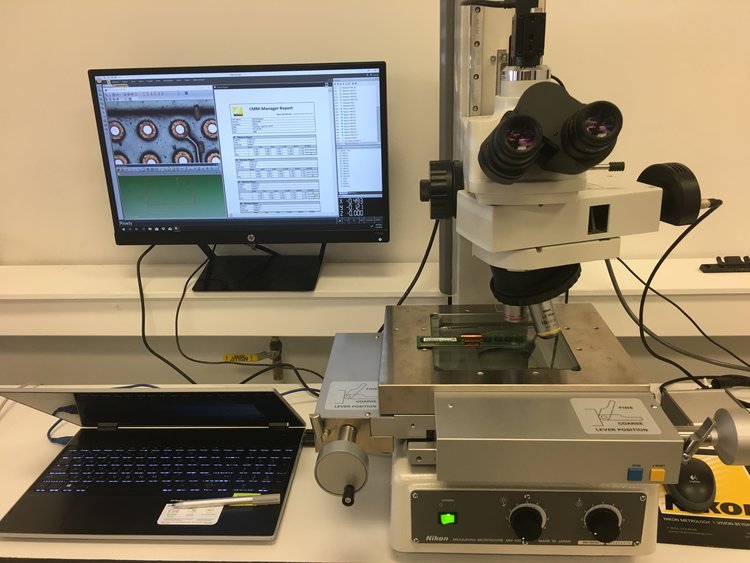

  1. Measuring Microscope - MM400 / MM-800
  2. Optical Comparator - V12
  3. 3rd Party optical system with analog or digital scales


Most manual optical systems will use Insight Metrology IM-USB or a similar scale interface. This may vary from one region to another. See install guide for Insight Metrology device here: Insight Metrology - USB Interface.

Download HelpDeskFile and UI Layout for systems with the camera here:
HelpDeskFile_mm400_usb_camera.zip
mm400_usb_camera.xml

Download HelpDeskFile and UI Layout for systems without camera here:
HelpDeskFile_mm400_no_camera.zip
mm400_no_camera.xml
