CMM-Manager AS9102 Report Output

MS Excel to AS9102 conversion

Using CMM-Manager's default MS Excel report output, it is possible to convert directly to AS9102 format as follows.

Copy the CMM-Manager Excel report to the Report sheet and press the [Convert] button. Page 1, 2 & 3 of the AS9102 report are populated automatically.
​

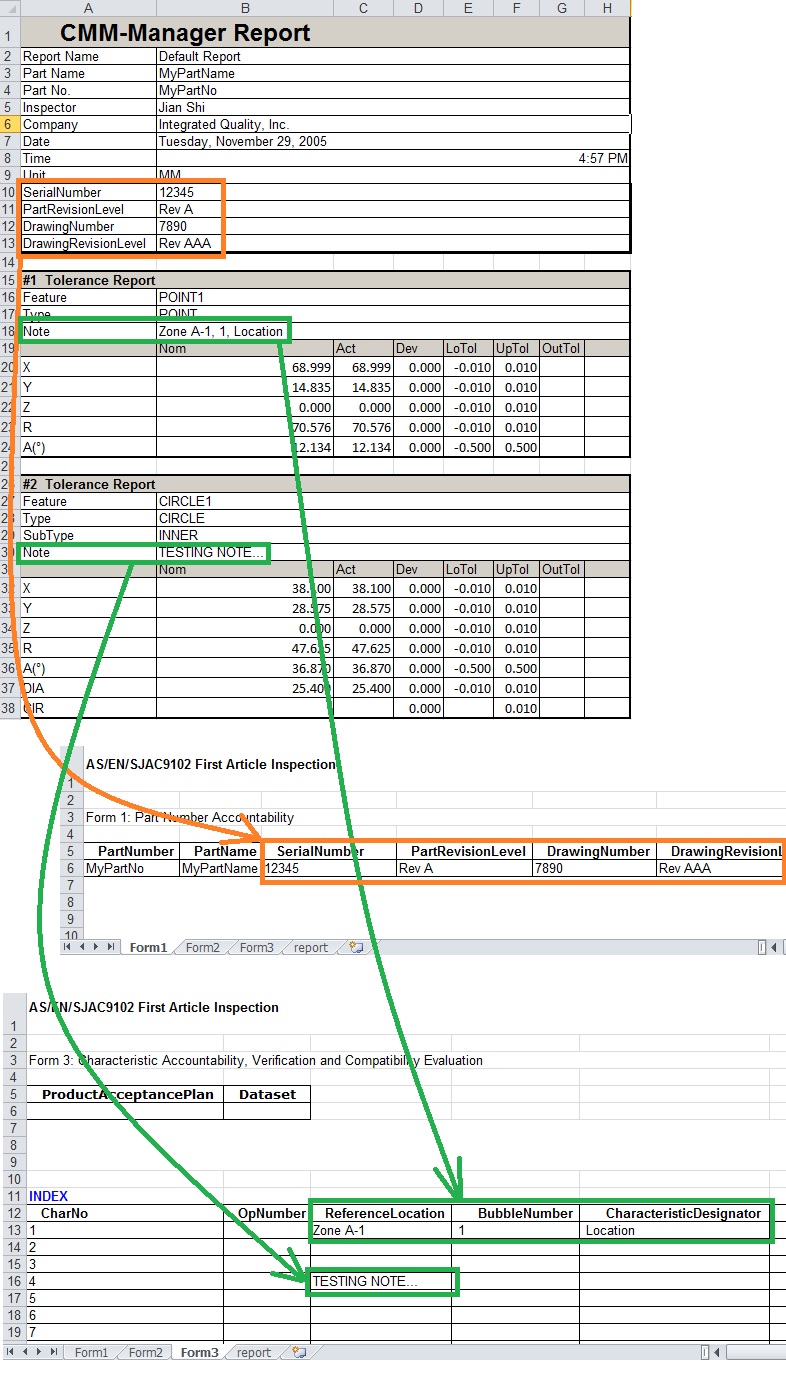

Reference Location, Bubble Number & Characteristic Designator can be populated on Form3 by adding a note to the report item when programmed in CMM-Manager as shown below in GREEN. Note: The THREE values are all entered into one report NOTE with comma delimitation - i.e. first value, second value, third value

Serial Number, Part Rev, Drawing Number, etc. can be populated on Form1 by adding Customer Data Fields with the names as shown below in ORANGE.

Save time and eliminate manual entry, Copy / Paste. etc. by automating the Report data input.  Set up an External Data Source as follows:
