Models:

WPC-2010, WPC-2020, WPC-2030, Eagle, Eagle Pro
Warning
Not supported: WPC-2000

Default Settings:

Default COM settings:
115200, N, 8, 1 (WPC2030)
38400, N, 8, 1 (WPC2020, WPC2030)
19200, N, 8, 1 (WPC2010)
4800, N, 8, 1 (HT400 jogbox)

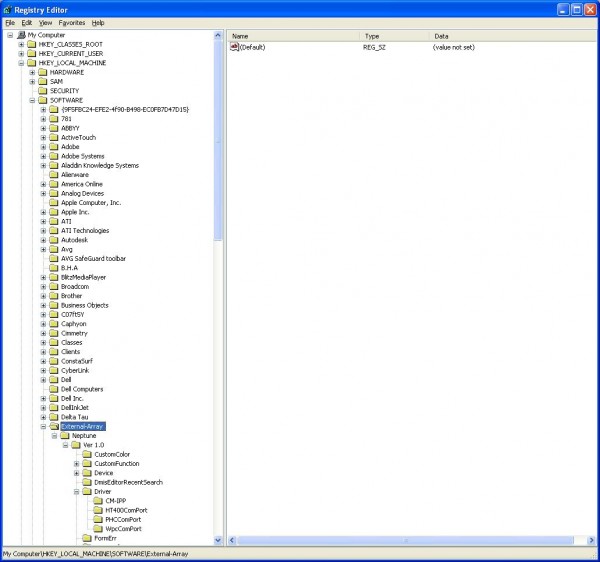

PHC Settings can be found in Windows Registry for systems running Open DMIS here - HKEY_LOCAL_MACHINE>SOFTWARE>External-Array>Neptune>Ver xx.xx>Driver>PHCComPort

(Wenzel machines typically use Pantec controllers)

Version specific Notes:

  1. Version 2026 - Error "Failed to load IQWPC.dll.  Either the driver is missing...." - Install Windows Components - Visual C++ Redistributable 2013
