How do I Save my Help Desk | Project | Probe Assembly | Probe Tip File?

How do I Save my Help Desk | Project | Probe Assembly | Probe Tip File?

Help Desk File:
Version 2020 and later:

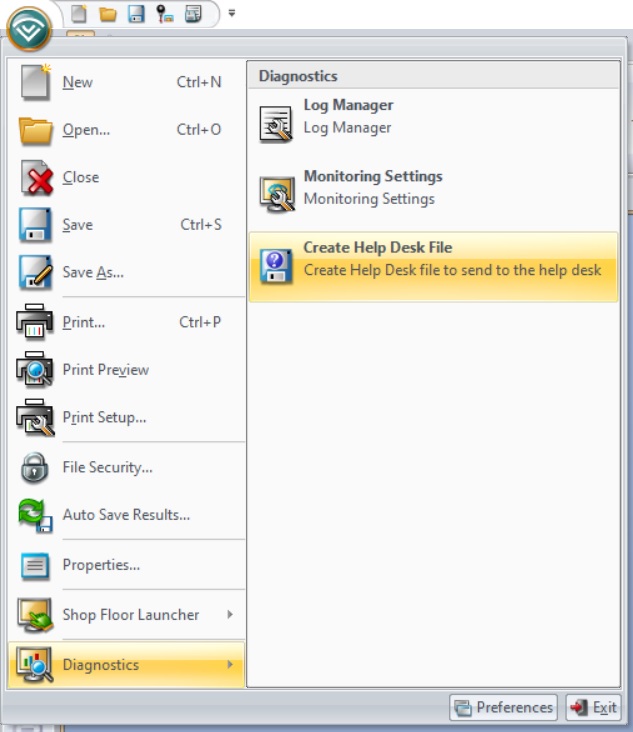

System Pearl | Diagnostics | Create Help Desk File.

​

Version 3.4 - 3.10:
System Pearl | Create Help Desk File.

Version 3.3 and earlier:
System | Configuration | Export

Project File:
System Pearl | Save Project

Probe Assembly File:
Probe Menu | Probe Assembly | Click the [SAVE] button in the dialog

Probe Tip File:
Probe Menu | Tip Manager | Click the [SAVE] button in the dialog

Notes
The help desk file includes probe assembly and tip files. These 2 files are not required to be generated after adding/modifying/deleting probe assemblies or tips as CMM-Manager will automatically save the change in the background. They are typically used to migrate configurations to an identical machine.
