File Types

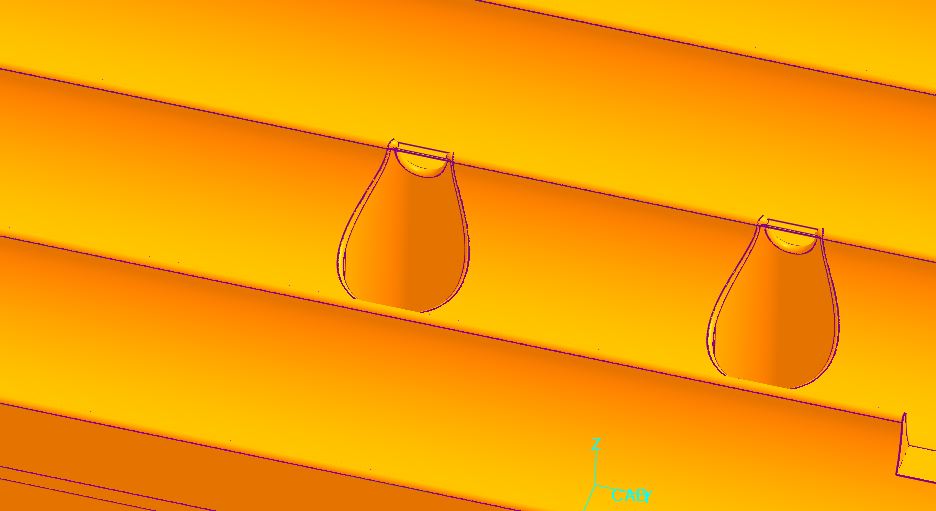

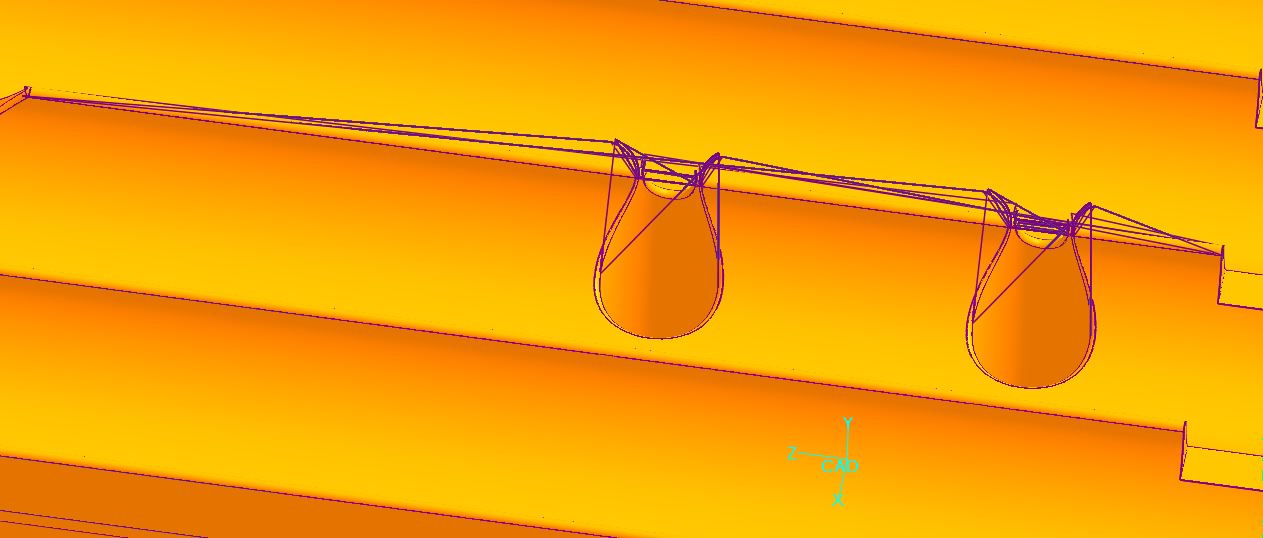

Below are two snips of the same part model. One was imported as a Solidworks part file, the other as IGES. The soldiworks file imported with a bunch of lines around the two counter-bored holes, but the IGES has only a few excess lines. Why is that? Will those lines cause any problems or are they just cosmetic? This is on CMM-M 2020 with the Solidworks importer.
